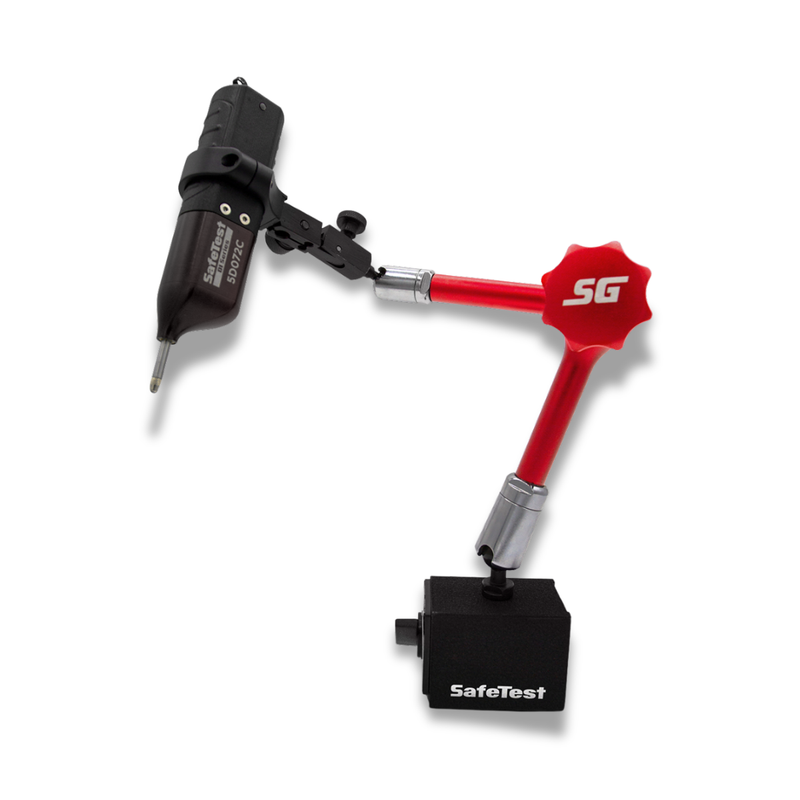

DIAL INDICATOR
The Dial Indicator is designed to remotely measure clearances, tolerances and wear on machine components safely and efficiently.
The Dial Indicator is designed to remotely measure clearances, tolerances and wear on machine components safely and efficiently.
Recognized as a new industry standard. Packaged in a rugged hard shell carry case, with built-in charging harness, the SafeTest DI
Kit is always ready to go at a moment’s notice.
A SafeTest DI Series Kit consists of 1, 2 or
4 Dial Indicators, our Wireless MultiTool
and Charging Case. Kits are supplied with everything needed to setup and conduct
testing, including high quality mag bases.
“ We got a chance to use the Bluetooth Dial Indicator to measure the upper hoist pin movement and the nose cone movement on one of the 794’s. It worked great we could stand on the ground instead of standing on a ladder to read a normal dial gauge.”
PRODUCT TESTIMONIAL
“ We got a chance to use the Bluetooth Dial Indicator to measure the upper hoist pin movement and the nose cone movement on one of the 794’s. It worked great we could stand on the ground instead of standing on a ladder to read a normal dial gauge.”
DIAL INDICATOR
TECHNICAL SPECS
ELECTRICAL
Battery: Nickel Metal Hydride
Operating Time: Up to 10 hours
Battery life-cycle: 1000 charging cycles
Charging Time: 4 hours
MECHANICAL
Measurement range: 10mm (0.394in)
Resolution: +/- 0.01mm (0.0005in)
Operating temperature: 0-60ºC (32 - 140ºF)
COMMUNICATION
Maximum range: Up to 100m (328ft)
DIAL INDICATOR
DIAL INDICATOR
OUR KIT OPTIONS
KIT OPTIONS

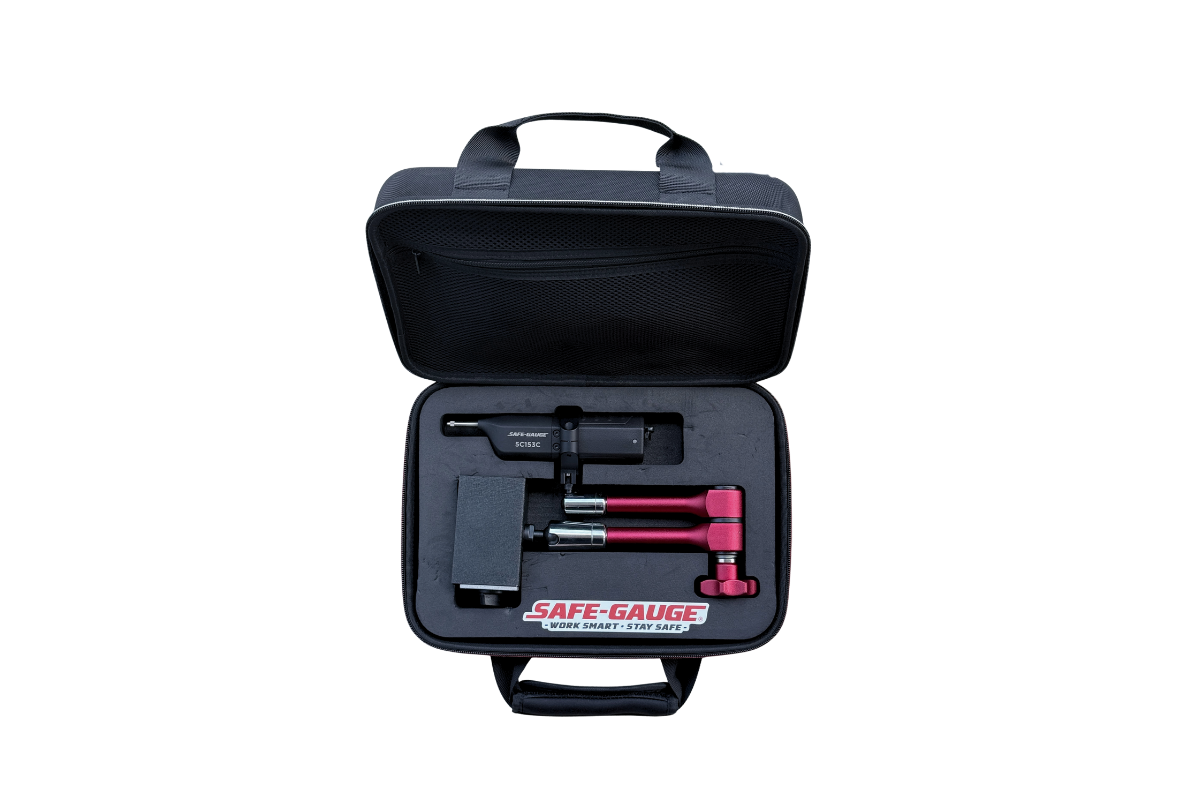

DI-01-010
Single channel Dial Indicator kit with a standard MultiTool or MultiTool Pro

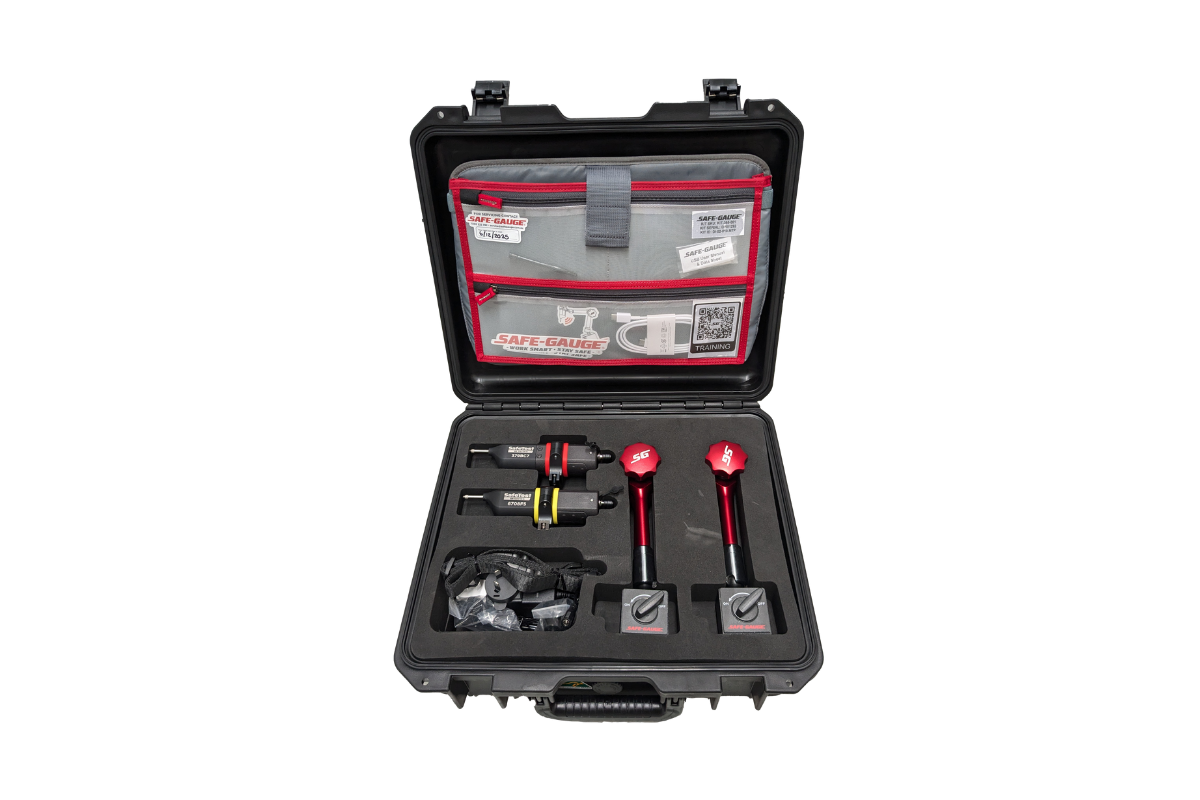

DI-02-010
2 Channel Dial Indicator kit with a standard MultiTool or MultiTool Pro

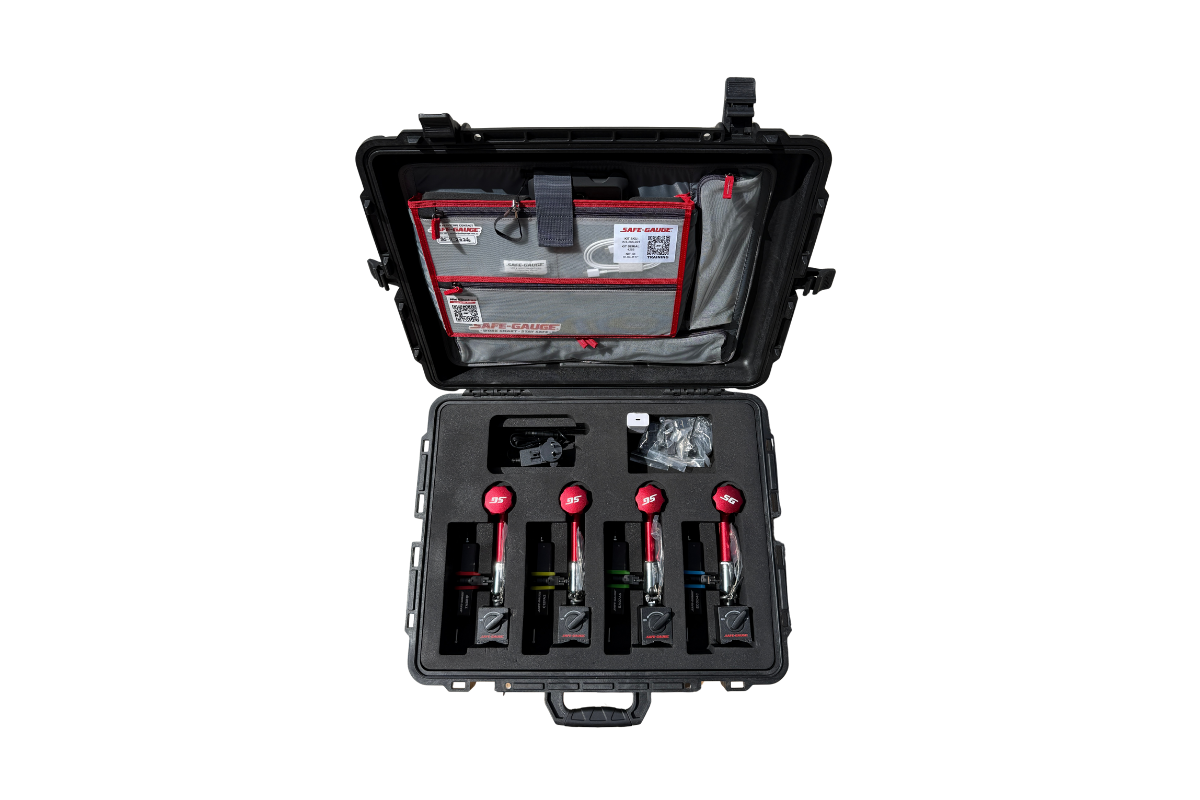

DI-04-010
4 Channel Dial Indicator kit with a standard MultiTool or MultiTool Pro
DI-06-010
6 Channel Dial Indicator kit with a standard MultiTool or MultiTool Pro

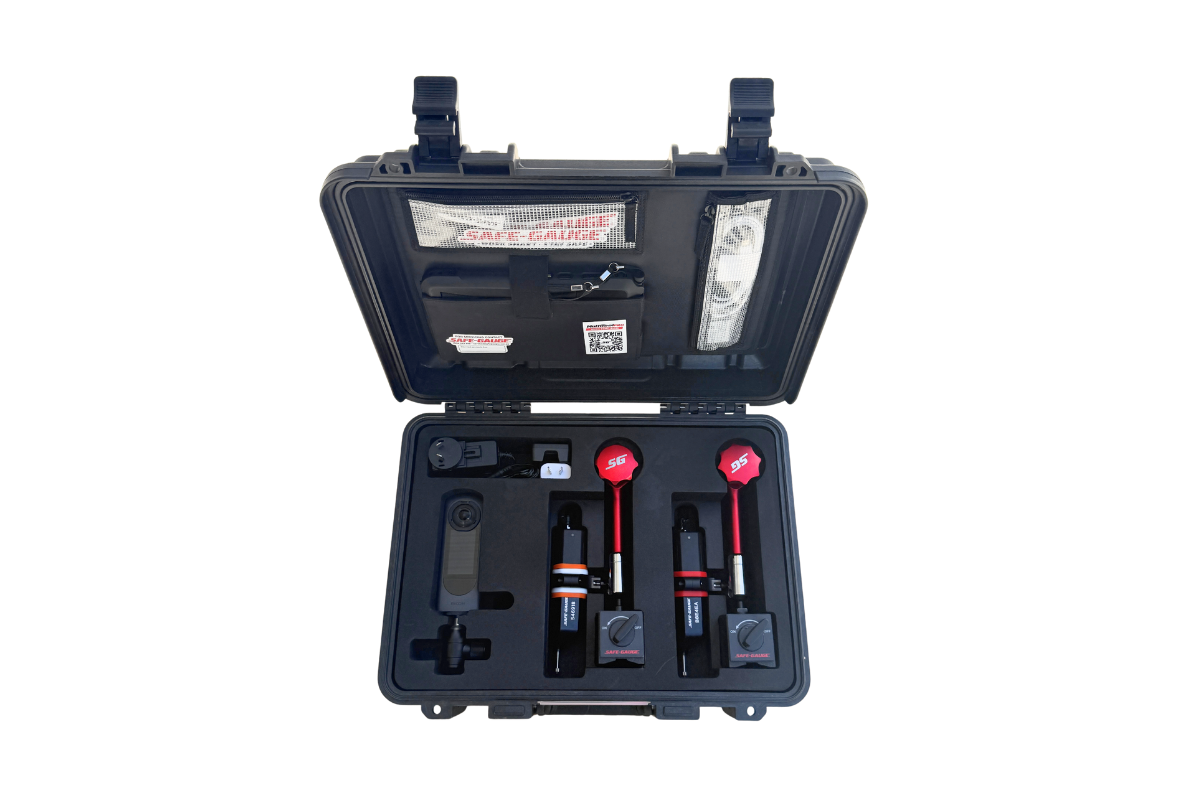

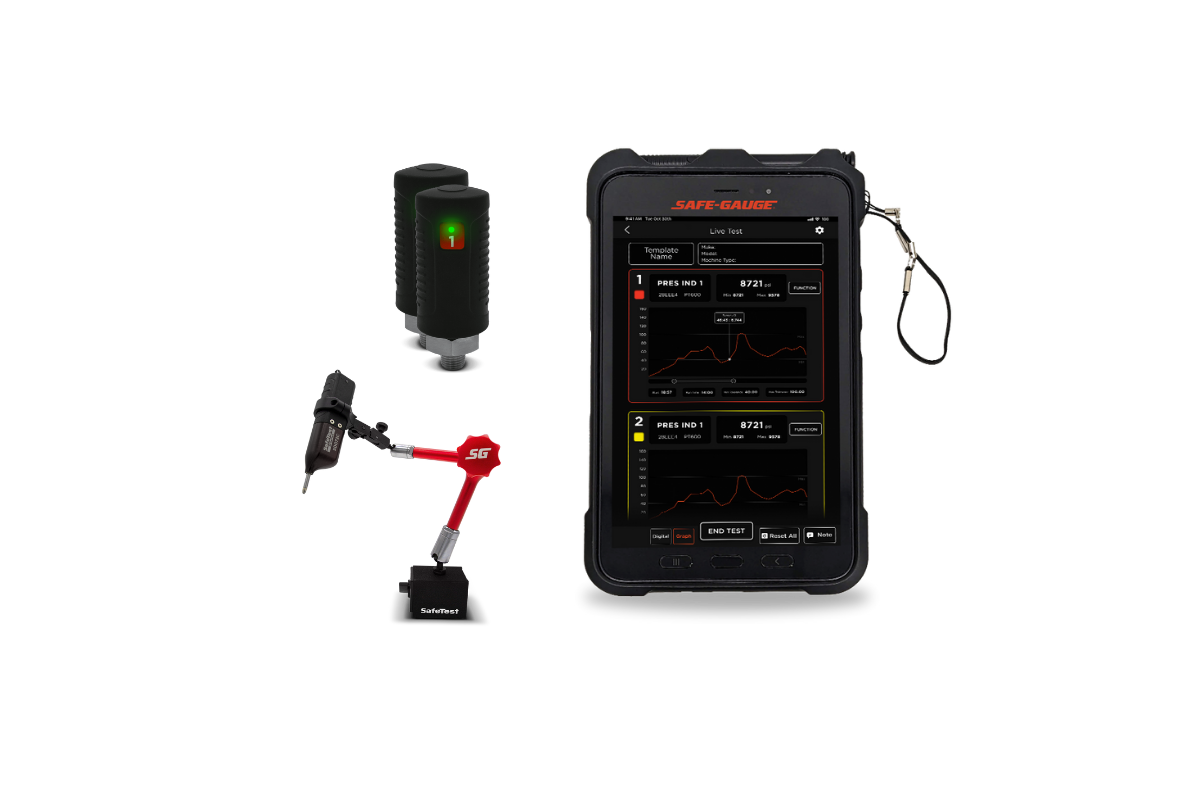

FS-03-2PT.1DI
2 Channel Dial Indicator kit with a standard MultiTool or MultiTool Pro
CONFIGURATIONS
300 BAR • 600 BAR • CUSTOM

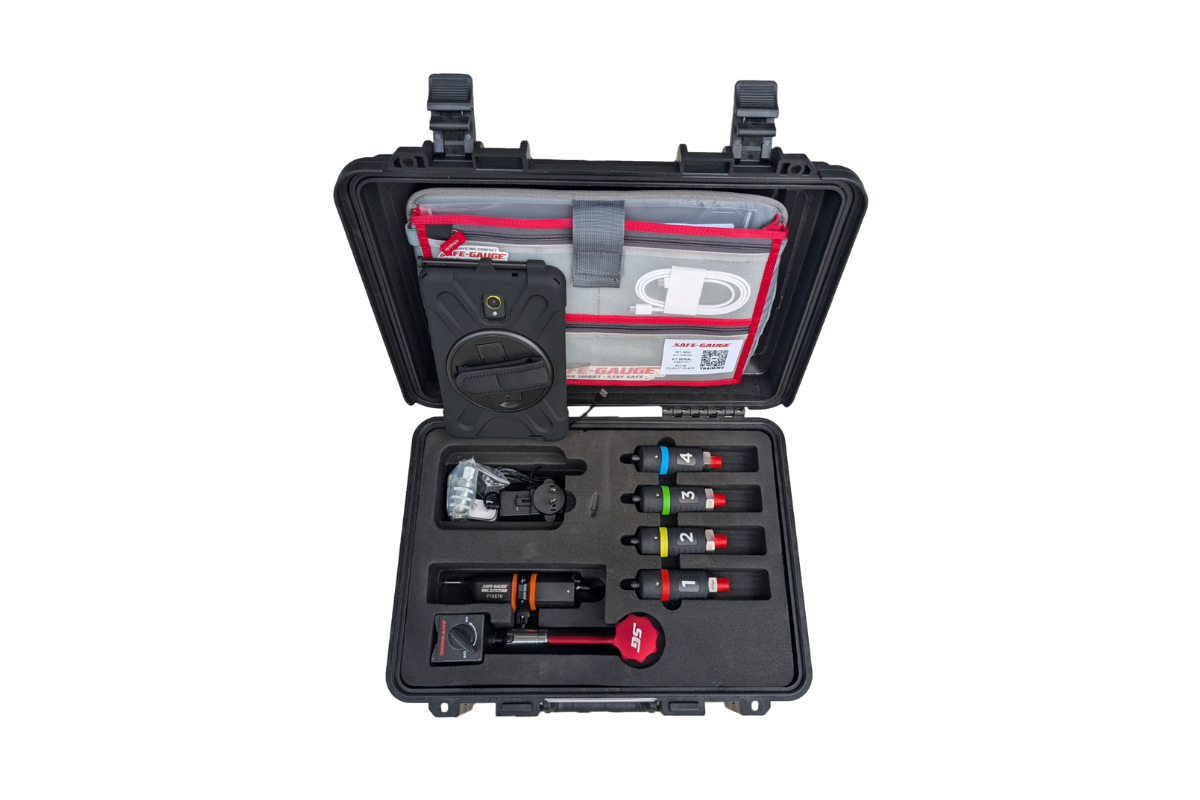

FS-05-2PT.1DI
5 Channel kit with 2 PTs, 1 DI and a standard MultiTool or MultiTool Pro
CONFIGURATIONS
300 BAR • 600 BAR • CUSTOM

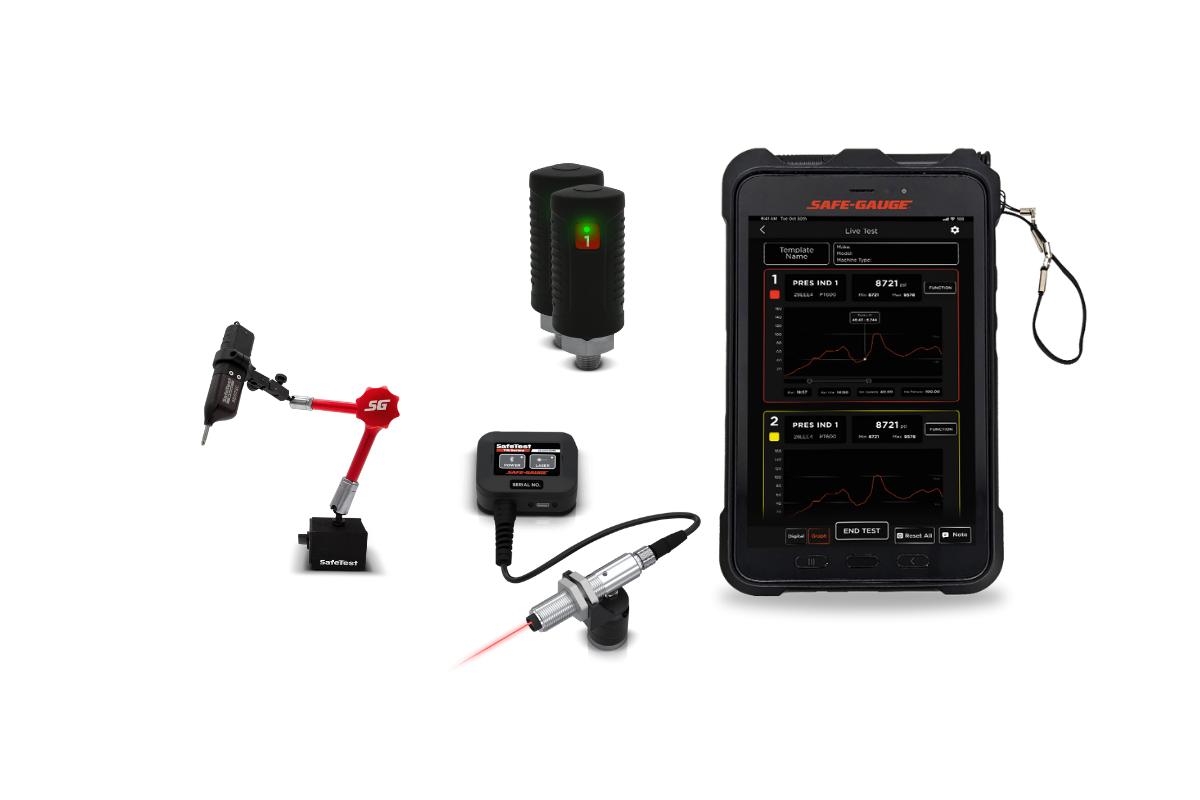

FS-04-2PT.1DI.1TM
4 Channel kit with 2 PTs, 1 DI, 1 TM and a standard MultiTool or MultiTool Pro
CONFIGURATIONS
300 BAR • 600 BAR • CUSTOM

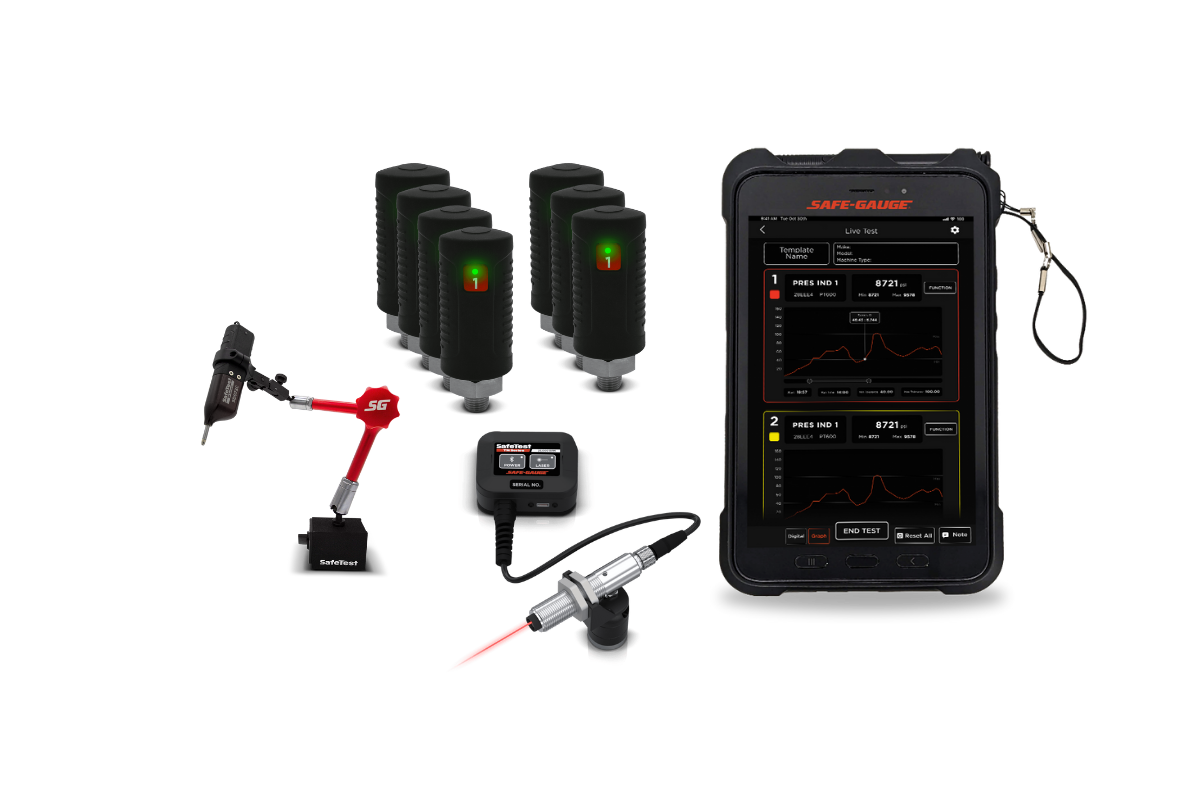

FS-09-7PT.1DI.1TM
9 Channel kit with 7 PTs, 1 DI, 1 TM and a standard MultiTool or MultiTool Pro
CONFIGURATIONS
CUSTOM
