Flow Meter

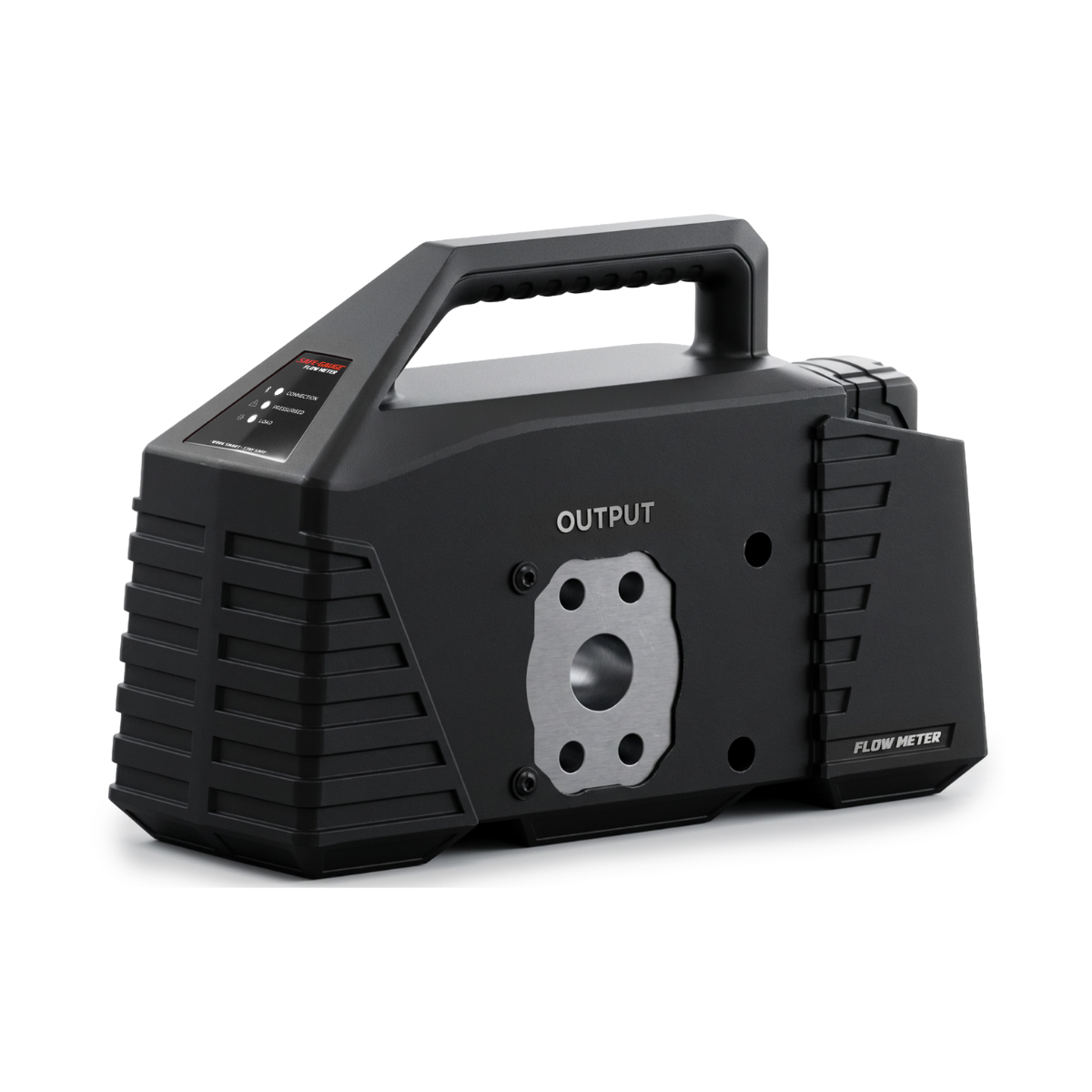

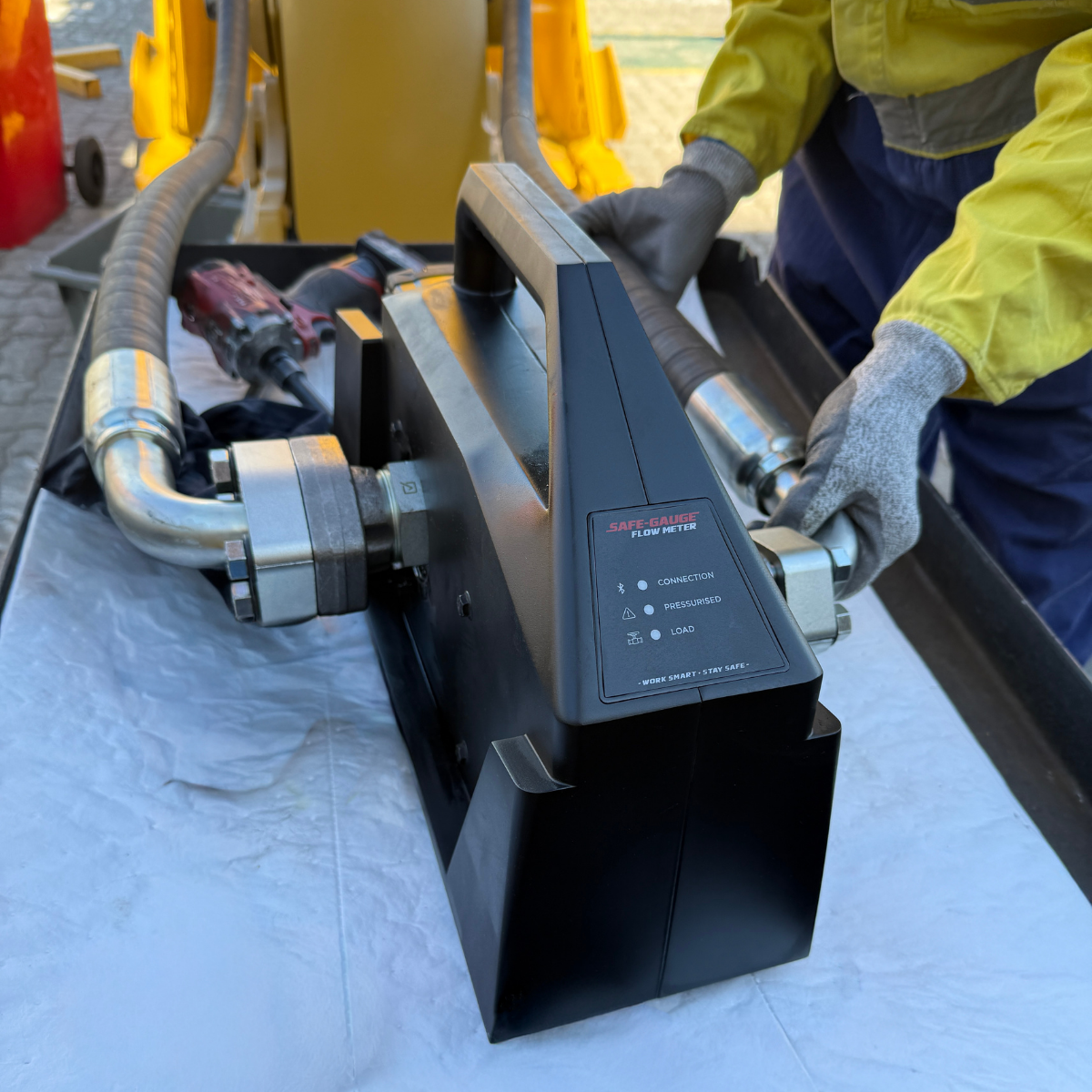

The SafeGauge Wireless Hydraulic Flow Meter removes technicians from the live work area when troubleshooting and testing hydraulic systems in mobile and fixed plant, such as pumps, valves and motors.

It allows technicians to remotely adjust the load on a hydraulic system while monitoring the live flow, pressure and temperature readings.

With the MultiTool Pro providing all the information in an easy-to-use interface with logging and reporting capabilities, testing is completed safer, more efficiently, and with greater transparency. Wirelessly view, control and log hydraulic data for a safer and more efficient testing experience.

DISCLAIMER - While every effort has been made to ensure the accuracy of this page at the date of issue, SafeGauge assumes no liability resulting from any omissions or errors in this page, and reserves the right to revise content at any time.

*Milwaukee® and M18™ are trademarks of Techtronic Industries. SafeGauge is not affiliated with or endorsed by Milwaukee Tool

Pre-release product: Design and specifications may change. Contact your local sales representative for the latest information.
Publication date: 19 Mar 2026.

Features
  • Fully remote operation.
  • 100m Bluetooth range.
  • Simultaneous measurement of flow, pressure and temperature.
  • Up to 420 bar of system load with granular adjustment.
  • Over pressure safety valve.
  • Simply capture data and generate reports.
  • Battery powered.

Electrical Specifications

Battery Type: Compatible with Milwaukee M18 Batteries*.
Power Draw: Approximately 18W power draw at maximum load​.
Operating Time: 12 hours under typical usage with 5Ah battery.
Pressure rating​: 420 bar (6091 psi) maximum pressure, set by an internal relief valve​.
Pressure Reading​: 0 to 420 bar​ (0 to 6500 psi​).
Temperature Reading​: -20 C to 100° C​ (-4 to 212° F​).
Flow Reading​: 0 to 567 L/min​ (0 to 150 GPM​).
Pressure Load​: 420 bar (6091 psi) load pressure.

*Milwaukee® and M18™ are trademarks of Techtronic Industries. SafeGauge is not affiliated with or endorsed by Milwaukee Tool.

Mechanical Specifications

Weight​: 17kg.
Material​: Nickel Plated Ductile Iron Manifold
Ingress Protection​: IP65
Size: L 434 x W 161 x H 298 mm​
Input / Output Ports: 1 ½ inch SAE Code 62 Female Input and Output

Communication Specifications

Frequency Type​: BLE5 (Bluetooth Low Energy)​
Maximum Range​: 100m​

Environmental Specifications

Battery Disposal: When finished with a SafeGauge product please return to SafeGauge for correct recycling, or follow your local area laws and guidelines for correct battery disposal.

Flow Meter Kit Options

Flow Meter Kit

Wireless Hydraulic Flow Meter
MultiTool Pro
Rolling Kit
5 Ah Milwaukee Battery
Wall Adaptor with Cable

What Our Customers Say About Us

The SafeGauge products are a great addition to our tooling inventory. Tooling that removes personnel from the footprint of the machine. It makes the technician's job easier. Dial indicators, again, remove personnel from the footprint of the machine. Eliminates technicians from crush/pinch points.

WesTrac

We now have the SafeGauge Dial Indicator units on-site, and they’re an absolute pleasure to use. We look forward to incorporating this new technology into our existing servicing procedures.

Fortescue

We have mandated SafeGauge Pressure Transducers across our entire site and banned regular pressure gauges entirely. SafeGauge products have made our maintenance procedures significantly safer by entirely removing our techs from exposure to high-risk areas. The implementation has reduced the time it takes to do our regular checks by at least 50%.

WesTrac

Just wanted to say thanks for lending us the latest testing kit for the trial on DT5304. Feedback from the team is that it works well and does what it's meant to do. The transducers have good range. The only request is for some extra transducers in the kit as we have already discussed.

WesTrac

This transducer kit is brilliant! Absolutely better than the other one we have; it was raining the day we completed a transmission test on the 793F. We fitted the transducers and sat in the cab, completed the test quickly and very easily, thanks to the new kit.

WesTrac

This tooling has almost halved our workload during live testing and the lads love it as it is a lot more user-friendly than the previous tooling we had. Since then, we’ve purchased another kit after the first one we bought. We highly recommend SafeGauge to others for tooling purchases as the tooling is simple, robust, and user-friendly.

Rio Tinto

Frequently Asked Questions

How does the over pressure safety valve work?

If the pressure exceeds the max limit, it bypasses the unit to protect it. This is unlike other devices which have burst disks that would require replacement.

What is the maximum load/pressure?

The device is rated up to 415 bar (6000 psi). The Flow Meter can generate 350 bar (5000 psi) of load in the system.

How is the temperature measured?

Hydraulic fluid temperature is measured with a probe that is submersed in the fluid.

How heavy is the SafeGauge Flow Meter?

17kg (37.48 pounds).
