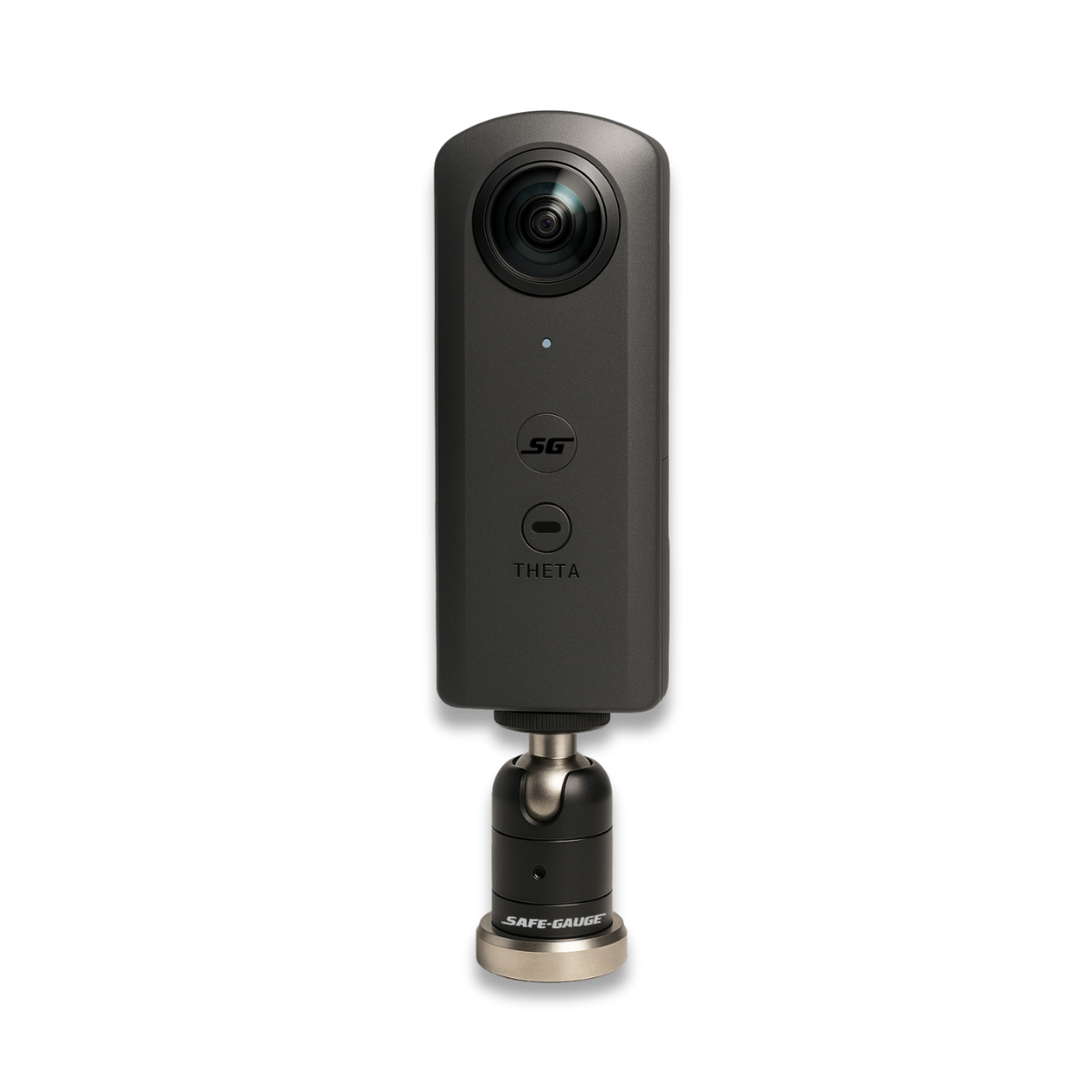

Inspection Camera

The SafeGauge Inspection Camera gives technicians a second set of eyes while testing and inspecting heavy equipment.

Stream live video directly to the MultiTool Pro tablet at up to 1080p, with a 360° field of view and virtual pan, tilt and zoom controls to inspect components from different angles. Built-in video stabilisation provides a clearer live view and smoother recordings, while adjustable exposure settings help improve visibility in low-light conditions.

Capture photos during an inspection and attach them directly to PDF test reports, providing visual evidence alongside your test data. Photos are stored in the MultiTool Pro media library for easy access, while recorded videos can be transferred to a computer via USB-C.

Designed for demanding mining and heavy equipment environments, the Inspection Camera features an IP68-rated housing and a strong magnetic mount with a lockable swivel head for secure positioning. Fast charging provides up to 80% charge in 20 minutes, helping technicians get the camera back into use quickly.

Features
  • Stream up to 1080px video to the MultiTool Pro tablet
  • Take photos and attach to PDF test reports
  • Photos can be viewed in the MultiTool Pro media library
  • Access recorded videos via USB-C cable to computer
  • Virtual pan, tilt and zoom capability in the live stream
  • 360° field of view
  • Rugged IP68 design for tough mining conditions

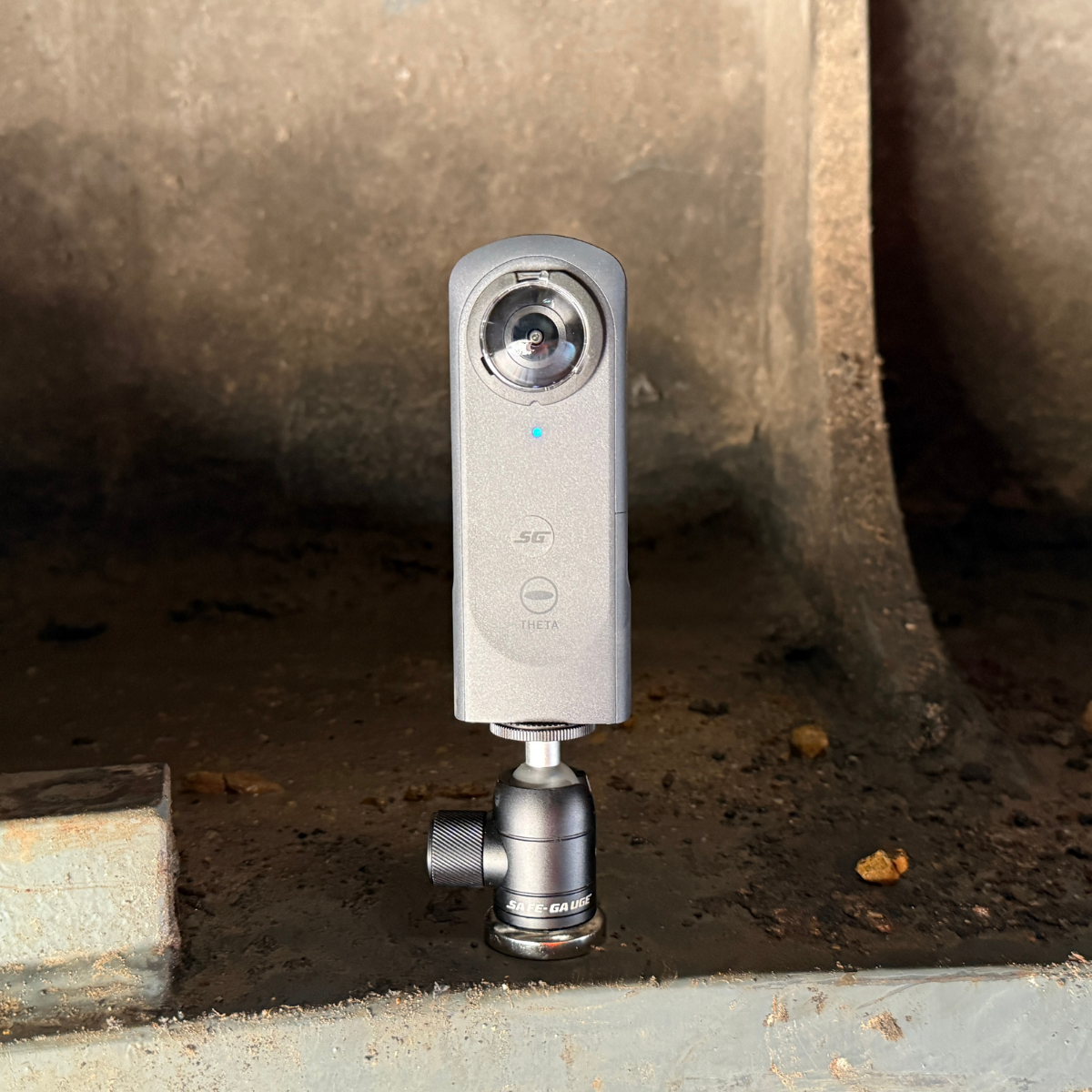

  • Strong magnetic mount with lockable swivel head
  • Fast charging, up to 80% in 20 minutes
  • Inbuilt video stabilisation in stream and video recordings
  • Exposure settings can be adjusted within the live view to improve visibility in low-light conditions

Lens and Media Specifications

Aperture: F2.0
Image Sensor: 1/1.28" (x2), Photo resolution: ~72 MP (11904x5952)
Charging: To be charged by provided charger (5V USB Type-C)
Video Resolution: 8K: 7680x3840/30fps, 5.7K: 5760x2880/60fps, 4K: 3840x1920/120fps (max bitrate 180Mbps)
Still Image File Format: INSP / DNG
Video File Format: INSV (360°) / MP4 (single-lens), H.264/H.265, AAC 48kHz 16-bit
Recording Media: microSD (UHS-I, V30 or above, exFAT), up to 1TB
Shutter Speed & ISO: Shutter: 1/8000 to 120s (photo), 1/8000 to frame-rate limit (video); ISO100-6400
Exposure Compensation: -4.0 to +4.0 EV
Gyroscope: Six-axis gyroscope
Mounting Point: Magnetic Swivel Base
Charging Time: 35 minutes (from zero to full charge, 30W PD fast charge; 80% in 20 minutes)
Minimum Focus Distance: 0.6m (23.6in)
Device Protection: Replaceable Lens Guards, Fall Restraint Cable

Display and Connectivity Specifications

Display Panel: 2.5" Color LCD (440x696), Auto Brightness
Touch Panel: Capacitance Type
Wireless Standards: 802.11 a/n/ac (2.4 GHz / 5 GHz), Bluetooth BLE 5.2.
Interfaces: USB Type C, USB 3.0

Power and Dimensions Specifications

Battery: Rechargeable LiIon 2400mAh
Dimensions: 46.0mm (W) x 124.5mm (H) x 38.2mm (D) (~1.8" (W) x 4.9" (H) x 1.5" (D))
Weight: ~200grams (with battery and lenses) (~7.1oz)

Environmental Specifications

Operating Temperature Range: -20 to 40°C (-4 to 104°F)
Ingress Protection Rating: IP68 - dustproof and waterproof to 15m (49ft)

Downloads

Brochure
Data Sheet
Quick Start Guide

What Our Customers Say About Us

This transducer kit is brilliant! Absolutely better than the other one we have; it was raining the day we completed a transmission test on the 793F. We fitted the transducers and sat in the cab, completed the test quickly and very easily, thanks to the new kit.

WesTrac

Just wanted to say thanks for lending us the latest testing kit for the trial on DT5304. Feedback from the team is that it works well and does what it's meant to do. The transducers have good range. The only request is for some extra transducers in the kit as we have already discussed.

WesTrac

This tooling has almost halved our workload during live testing and the lads love it as it is a lot more user-friendly than the previous tooling we had. Since then, we’ve purchased another kit after the first one we bought. We highly recommend SafeGauge to others for tooling purchases as the tooling is simple, robust, and user-friendly.

Rio Tinto

The SafeGauge products are a great addition to our tooling inventory. Tooling that removes personnel from the footprint of the machine. It makes the technician's job easier. Dial indicators, again, remove personnel from the footprint of the machine. Eliminates technicians from crush/pinch points.

WesTrac

We now have the SafeGauge Dial Indicator units on-site, and they’re an absolute pleasure to use. We look forward to incorporating this new technology into our existing servicing procedures.

Fortescue

We have mandated SafeGauge Pressure Transducers across our entire site and banned regular pressure gauges entirely. SafeGauge products have made our maintenance procedures significantly safer by entirely removing our techs from exposure to high-risk areas. The implementation has reduced the time it takes to do our regular checks by at least 50%.

WesTrac

Frequently Asked
Questions

What is the Inspection Camera's IP rating?

IP68 - dustproof and waterproof to 15m (49ft)

What is the video resolution of the SafeGauge Inspection Camera?

8K: 7680x3840/30fps, 5.7K: 5760x2880/60fps,
4K: 3840x1920/120fps (max bitrate 180Mbps)

Does the camera capture audio?

Whilst audio is not livestreamed to the MultiTool Pro, all saved video recordings contain audio.

How can I export/send videos from the MultiTool Pro?

Due to the large file size of videos, we recommend using the USB feature to export video from the MultiTool Pro.

How many Inspection Camera photos can I attach to a single email?

We recommend that no more than 3-5 photos be attached to an email. If you need to export/send more, simply use the USB functionality.

How many cameras can be used at once?

Only one camera can be streamed to a single MultiTool Pro at once.
