PUSH ROD

The push rod enables technicians to obtain precise displacement measurements quickly and safely between two fixed points, even in areas with uneven surfaces or varying angles.

The versatile articulating magnetic mount allows for
rapid setup time and flexibility in mounting locations.

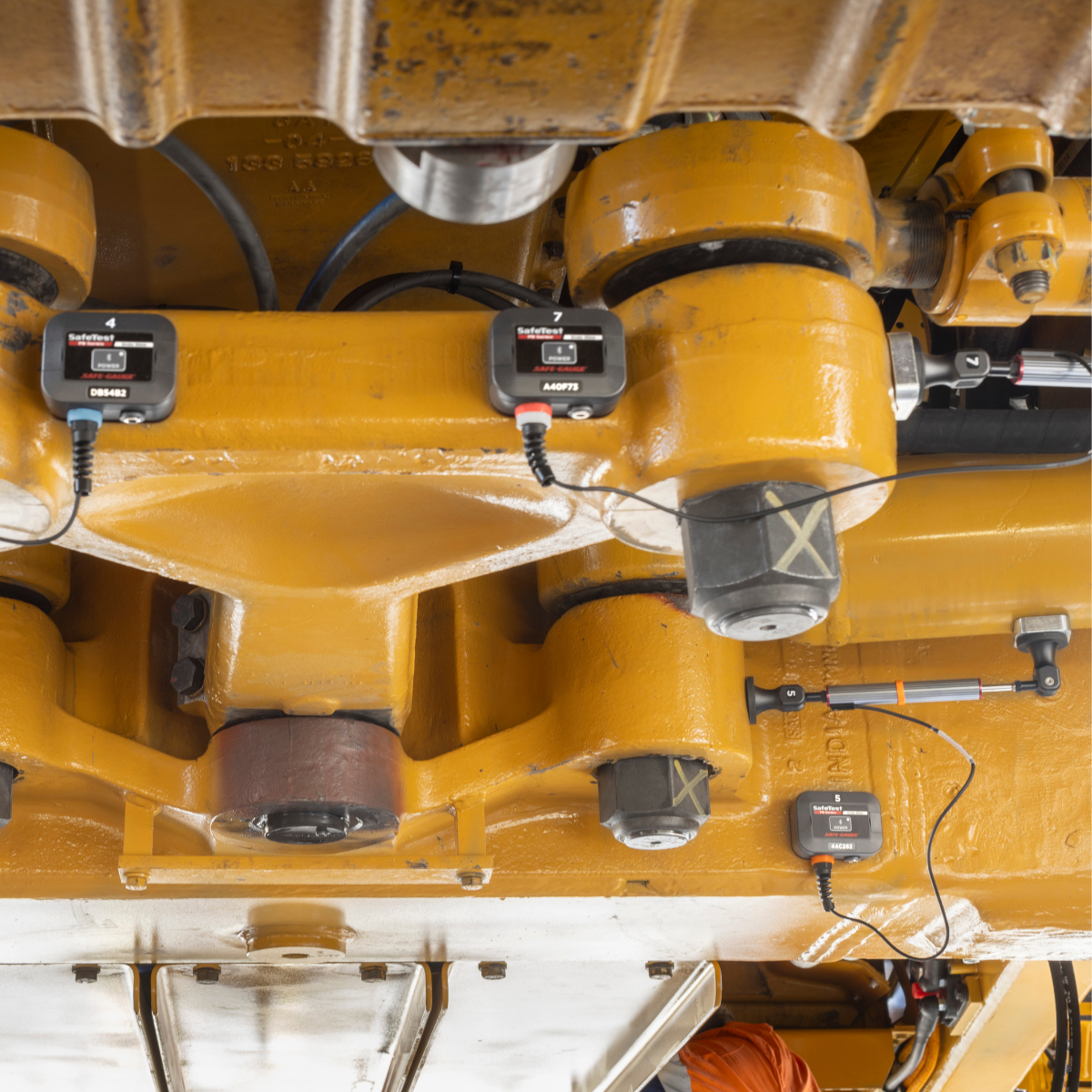

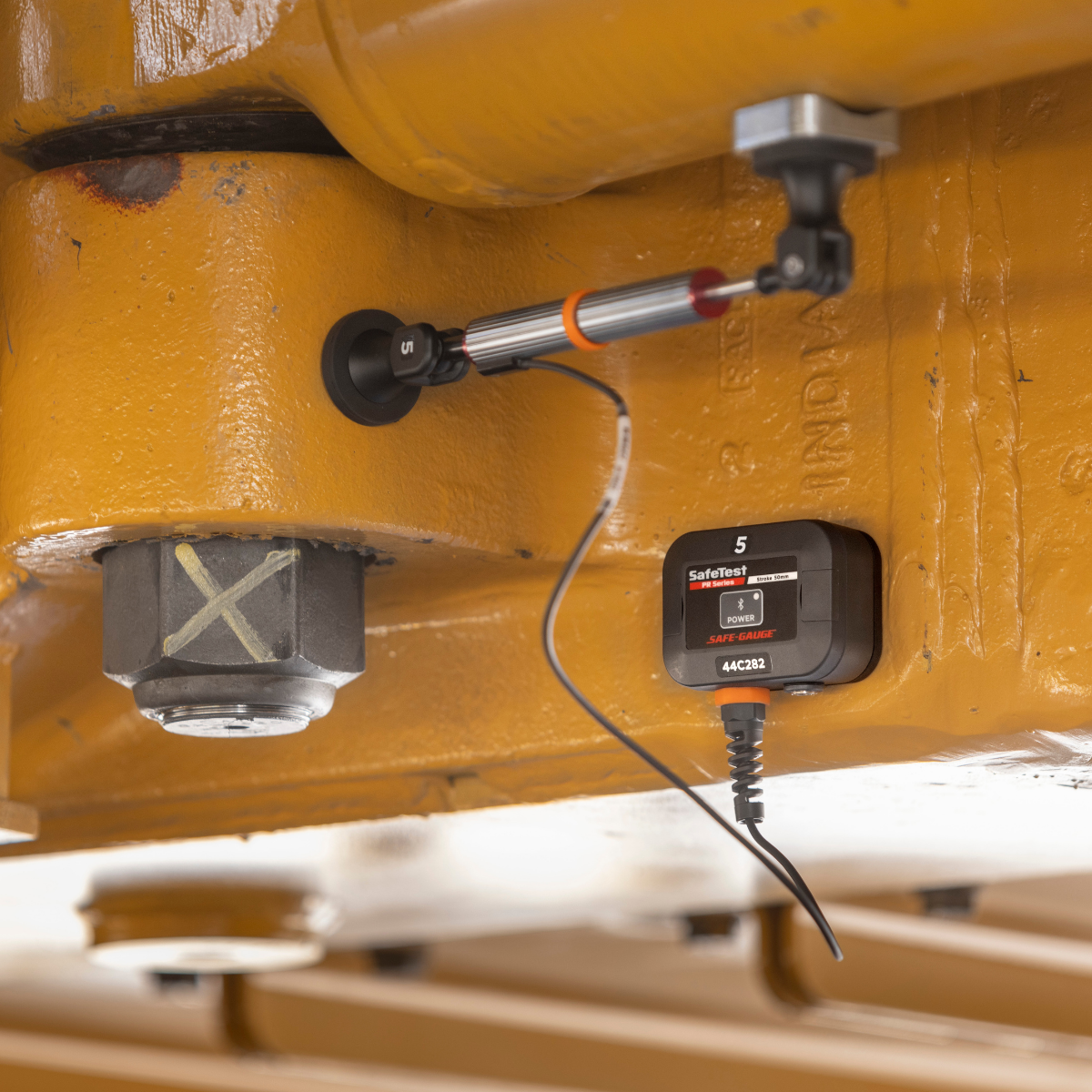

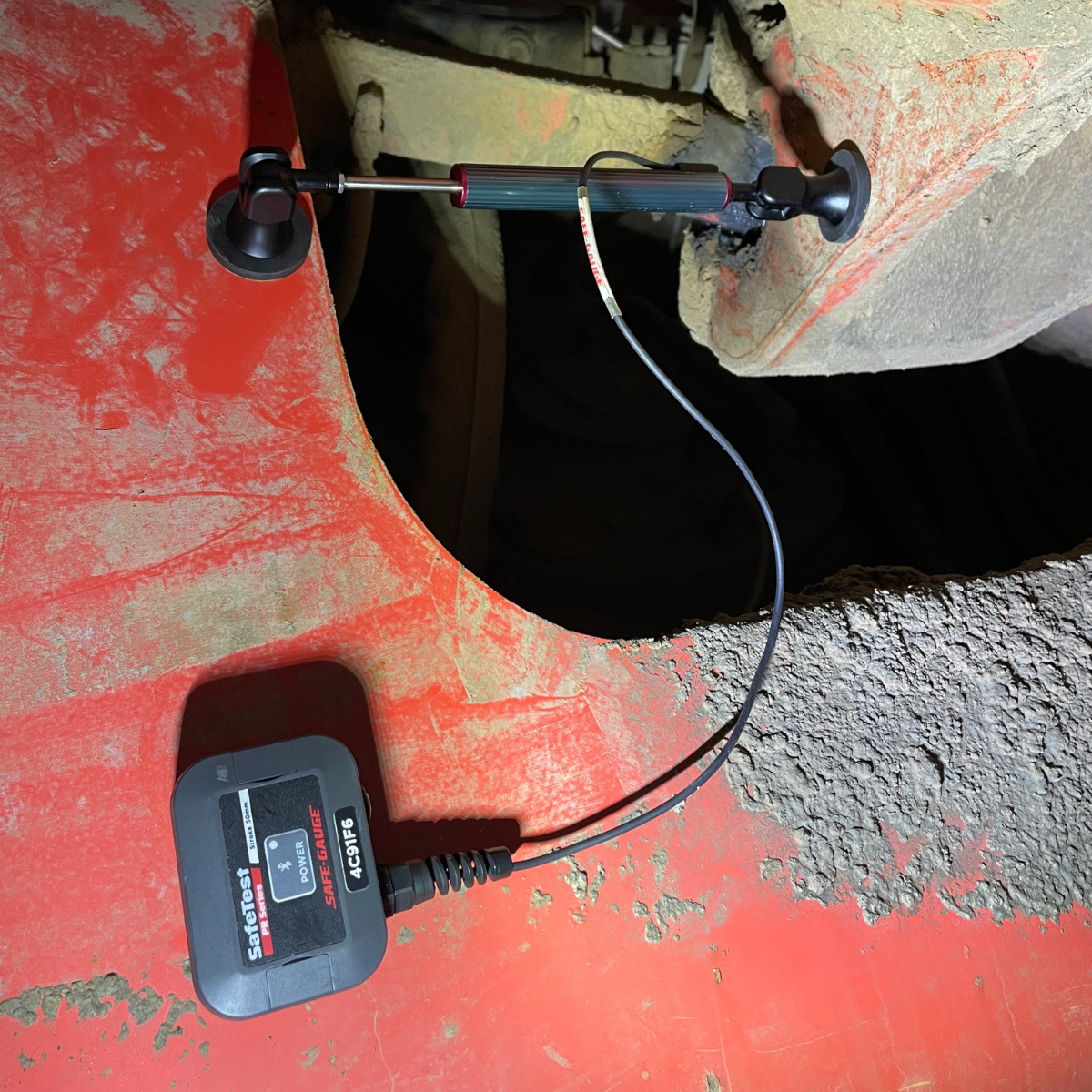

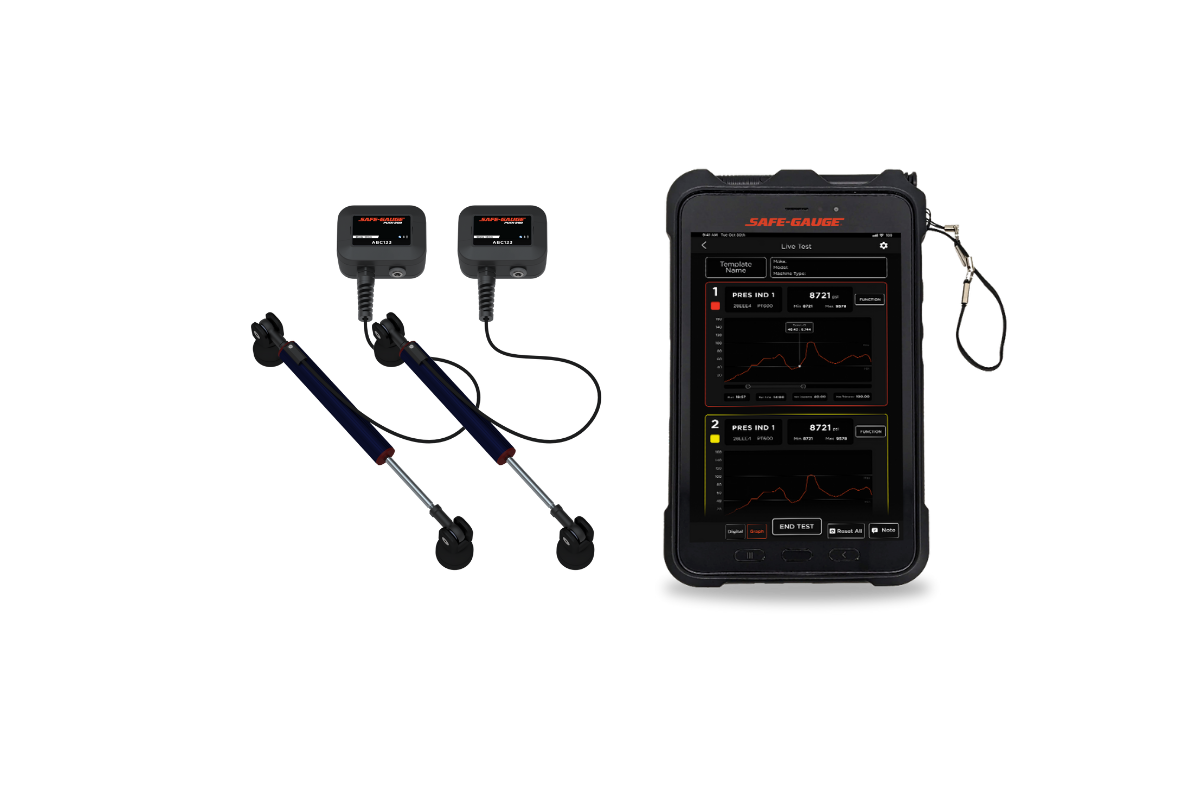

Simply place the sensor across the measured points, zero the sensor and watch as accurate data streams into the MultiTool Pro. The rubber-coated magnets fix the SafeGauge Push Rod to machinery securely, and provide vibration resistance during dynamic testing.

“When a machine is down, you need answers quick. This is a very useful, proven product, perfect for the job. Being a lightweight measuring device means it will stay securely on the machine and give accurate measurements.”

PRODUCT TESTIMONIAL

“When a machine is down, you need answers quick. This is a very useful, proven product, perfect for the job. Being a lightweight measuring device means it will stay securely on the machine and give accurate measurements.”

PUSH ROD

TECHNICAL SPECS

ELECTRICAL

Battery: Internal LiPo (Lithium Polymer) 3.7 volt pack  
Operating Time: Up to 12 hours  
Battery life-cycle: 1000 charging cycles  
Charging Time: 4 hours

MECHANICAL

Ingress Protection: IP67
Operating Range (Tested): 0.1 - 1.5mm (0.3 - 4.9ft.)
Operating Range (Angles): 15˚- 45˚ off target
Classification: Class 2 (Per IEC 60825-1:2014)  
Accuracy: +/- 0.01% of reading
Reflective Material: Use ONLY with reflective tape supplied by SafeGauge  
Operating temperature: -10 to 15˚C (14 - 122˚F)

COMMUNICATION

Maximum range: Up to 100m (328ft)

PUSH ROD

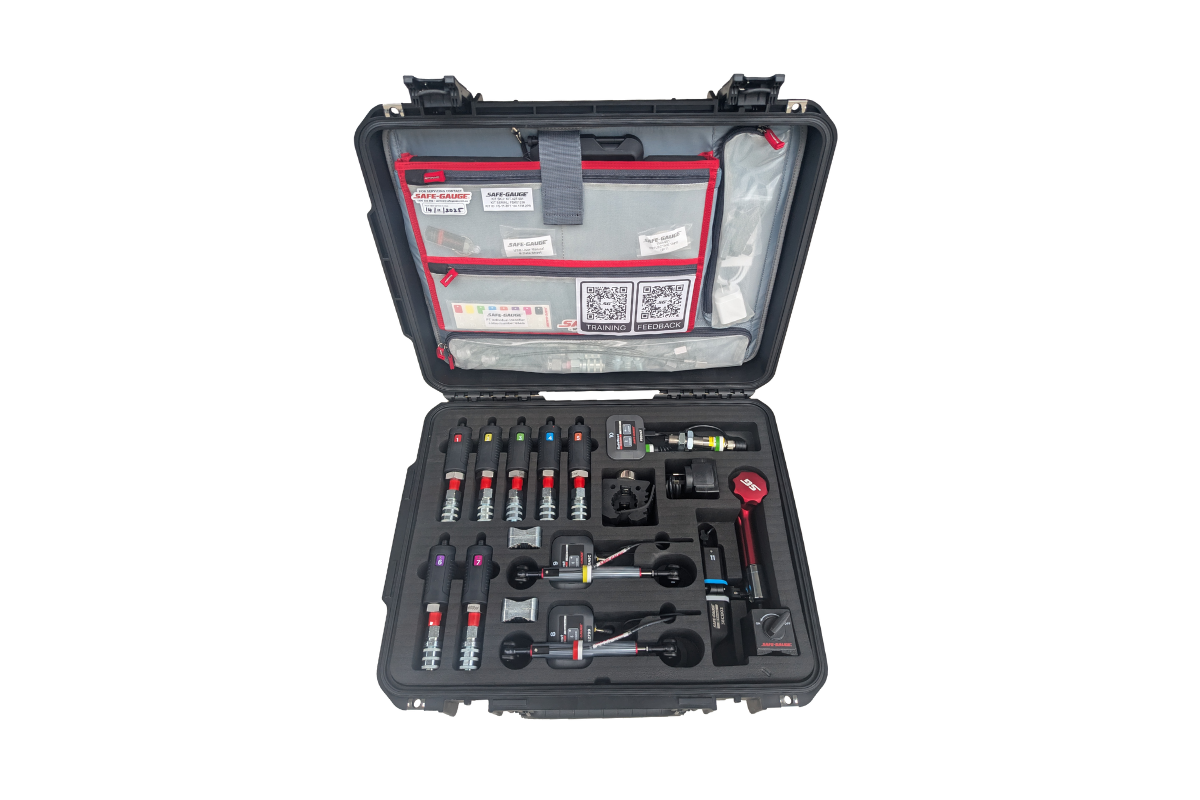

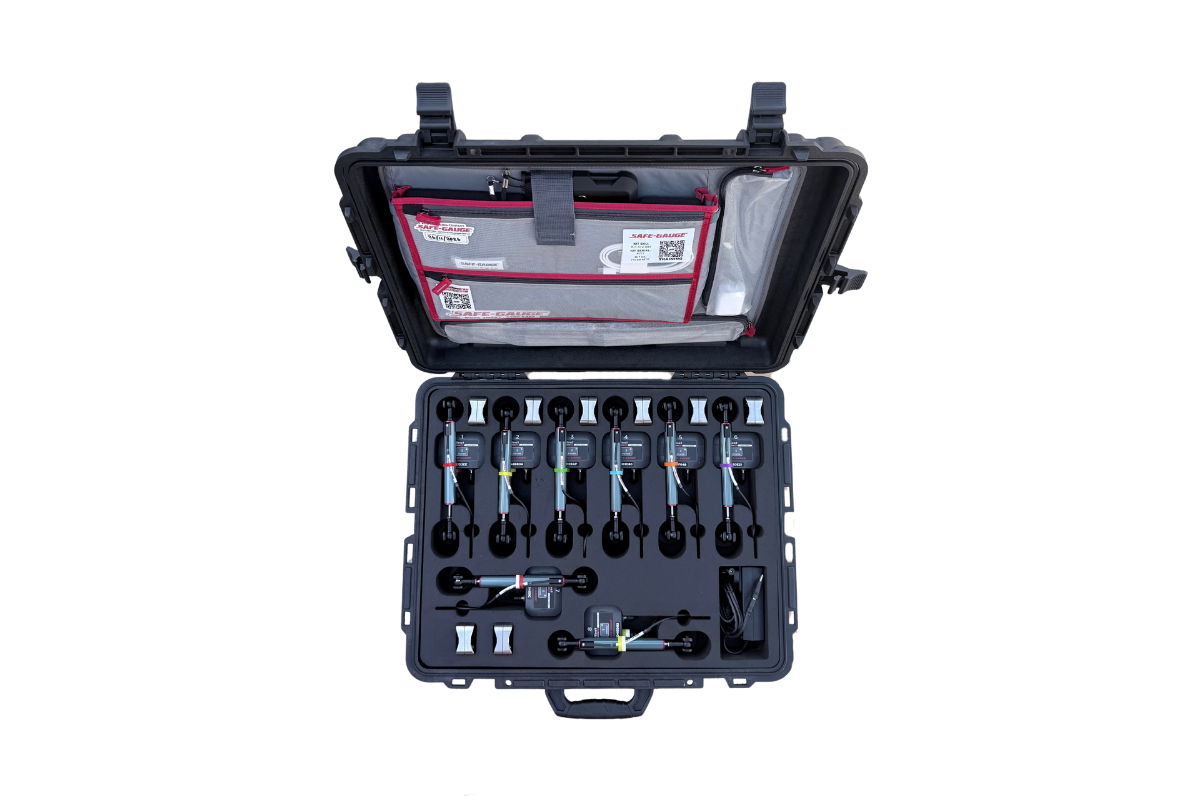

KIT OPTIONS
