TACHOMETER
The Tachometer enables completely wireless RPM measurements (e.g the speed of fans, pumps, drill heads, and other rotating parts).
The Tachometer enables completely wireless RPM measurements (e.g the speed of fans, pumps, drill heads, and other rotating parts).

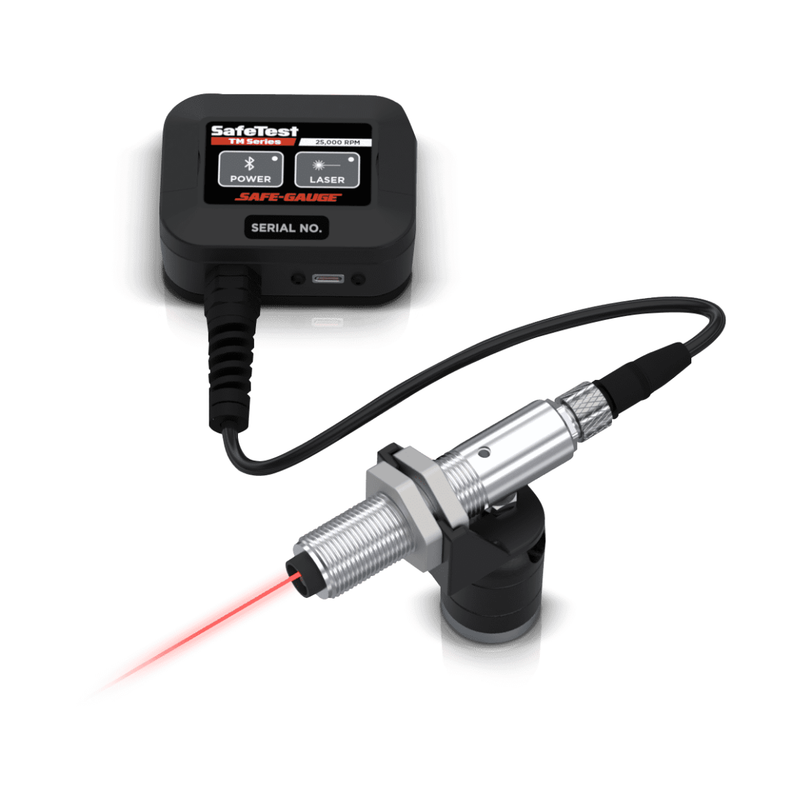

This rugged, non-contact laser tachometer is designed to achieve fast, accurate measurements in the harshest mining environments while out of harm’s way.

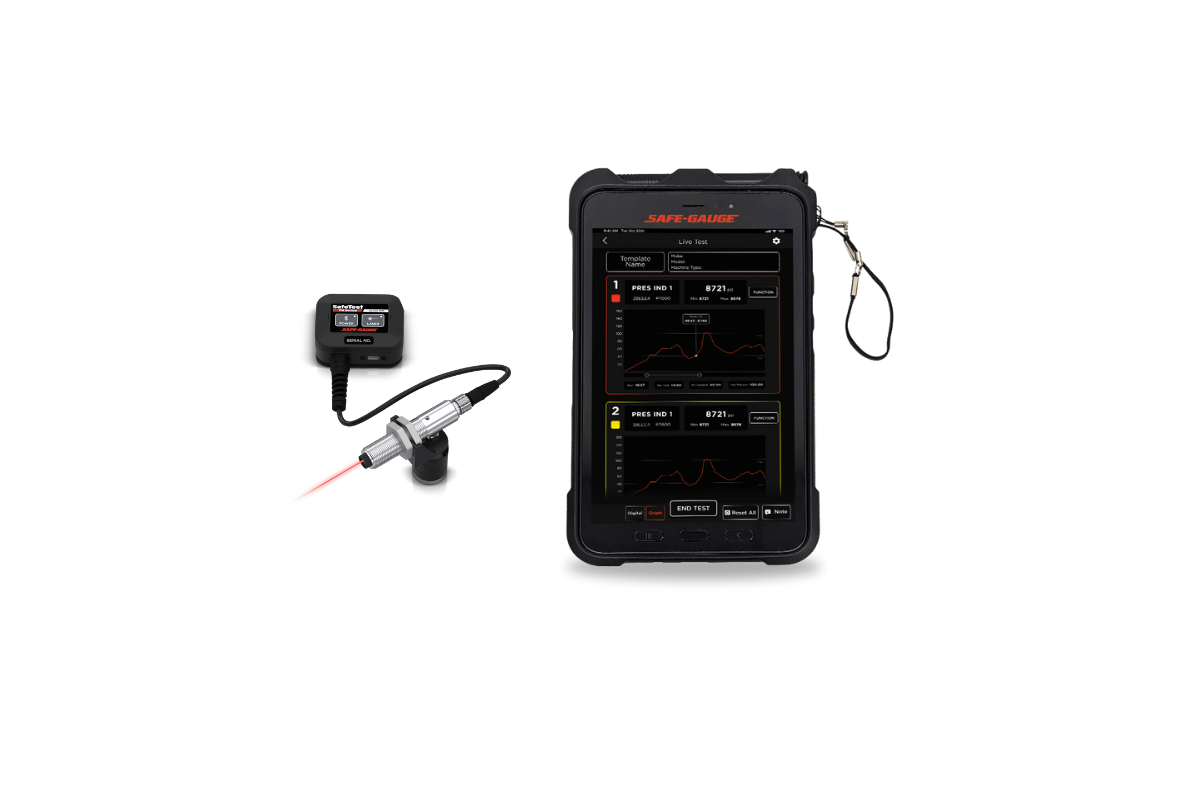

Use the Wireless MultiTool or MultiTool Pro to capture multiple RPM measurements at the same time. A SafeTest TM Series Kit consists of 1, 2 or 4 Tachometers, our Wireless MultiTool and Charging Case.

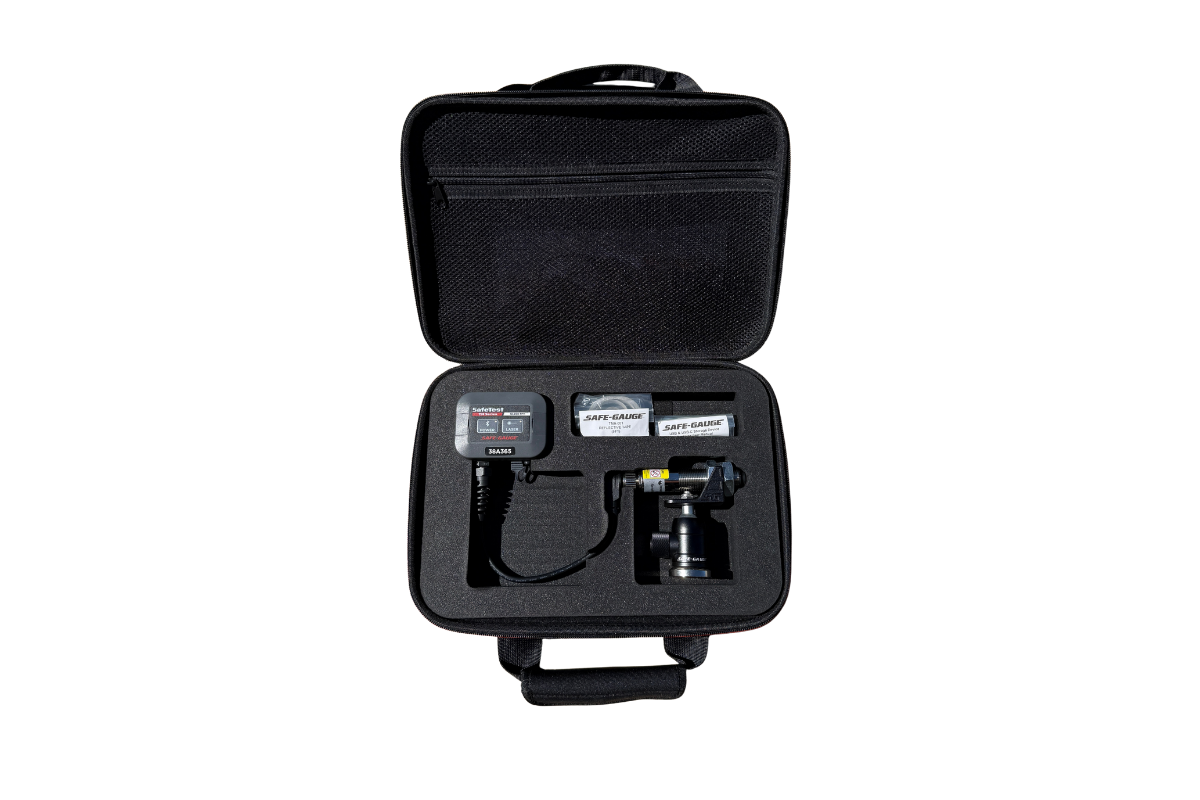

Packaged in a rugged hard shell carry case, with built-in charging harness, the SafeTest TM Kit is always ready to go at a moment’s notice.
“This is the best photo tach I have used, and it can be set up with machine isolated and used under live test procedure.”
PRODUCT TESTIMONIAL
“This is the best photo tach I have used, and it can be set up with machine isolated and used under live test procedure.”
TACHOMETER
TECHNICAL SPECS
ELECTRICAL
Battery: Internal LiPo (Lithium Polymer) 3.7 volt pack
Operating Time: Up to 12 hours
Battery life-cycle: 1000 charging cycles
Charging Time: 4 hours
MECHANICAL
Ingress Protection: IP67
Operating Range (Tested): 0.1 - 1.5mm (0.3 - 4.9ft.)
Operating Range (Angles): 15˚- 45˚ off target
Classification: Class 2 (Per IEC 60825-1:2014)
Accuracy: +/- 0.01% of reading
Reflective Material: Use ONLY with reflective tape supplied by SafeGauge
Operating temperature: -10 to 15˚C (14 - 122˚F)
COMMUNICATION
Maximum Range: Up to 100m (328ft)
TACHOMETER
TACHOMETER
OUR KIT OPTIONS
KIT OPTIONS
TM-01
Single channel Tachometer kit with standard MultiTool or MultiTool Pro
TM-02
2 Channel Tachometer kit with standard MultiTool or MultiTool Pro
TM-04
4 Channel Tachometer kit with standard MultiTool or MultiTool Pro
TM-06
6 Channel Tachometer kit with standard MultiTool or MultiTool Pro
FS-03-2PT.1TM
2 Channel Tachometer kit with standard MultiTool or MultiTool Pro
CONFIGURATIONS
300 BAR • 600 BAR • CUSTOM
FS-05-4PT.1TM
5 Channel kit with 4 PTs, 1 TM and a standard MultiTool or MultiTool Pro
CONFIGURATIONS
300 BAR • 600 BAR • CUSTOM
FS-04-2PT.1DI.1TM
4 Channel kit with 2 PTs, 1 DI, 1 TM and a standard MultiTool or MultiTool Pro
CONFIGURATIONS
300 BAR • 600 BAR • CUSTOM
FS-09-7PT.1DI.1TM
9 Channel kit with 7 PTs, 1 DI, 1 TM and a standard MultiTool or MultiTool Pro
CONFIGURATIONS
CUSTOM
