LASER DISPLACEMENT

Laser Displacement enables fully wireless measurement of wear in moving parts - in machinery such as slew rings, ball joints & pins. Designed to achieve fast, accurate readings.

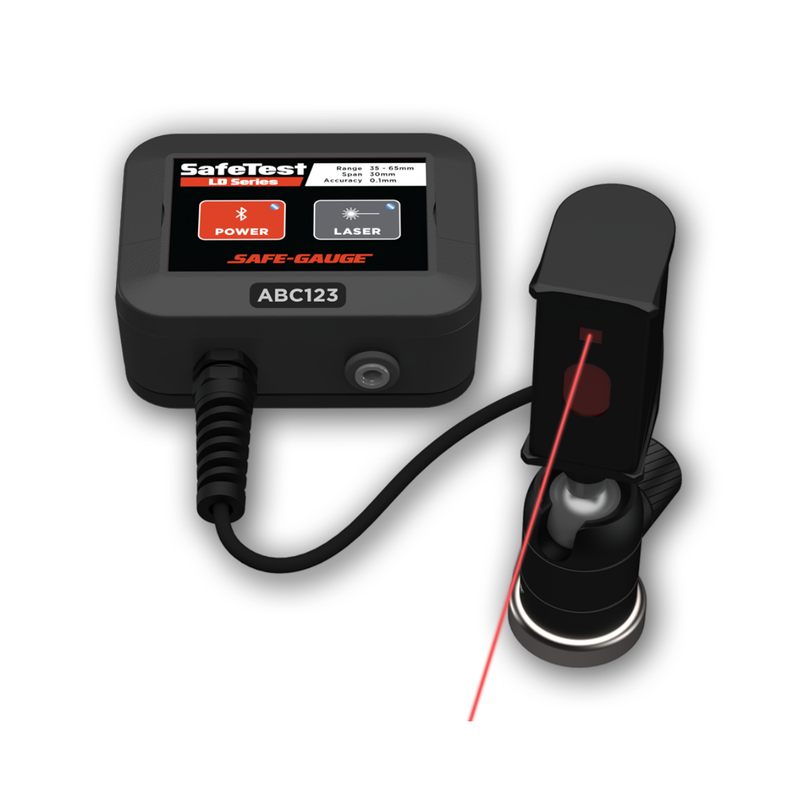

SafeGauge’s Laser Displacement enables completely wireless non-contact measurement of moving parts, removing technicians from the live work area while measuring the wear in machinery components such as slew rings, ball joints and pins.

This rugged, non-contact laser displacement sensor is designed to achieve fast, accurate measurements in the harshest mining environments while out of harm’s way.

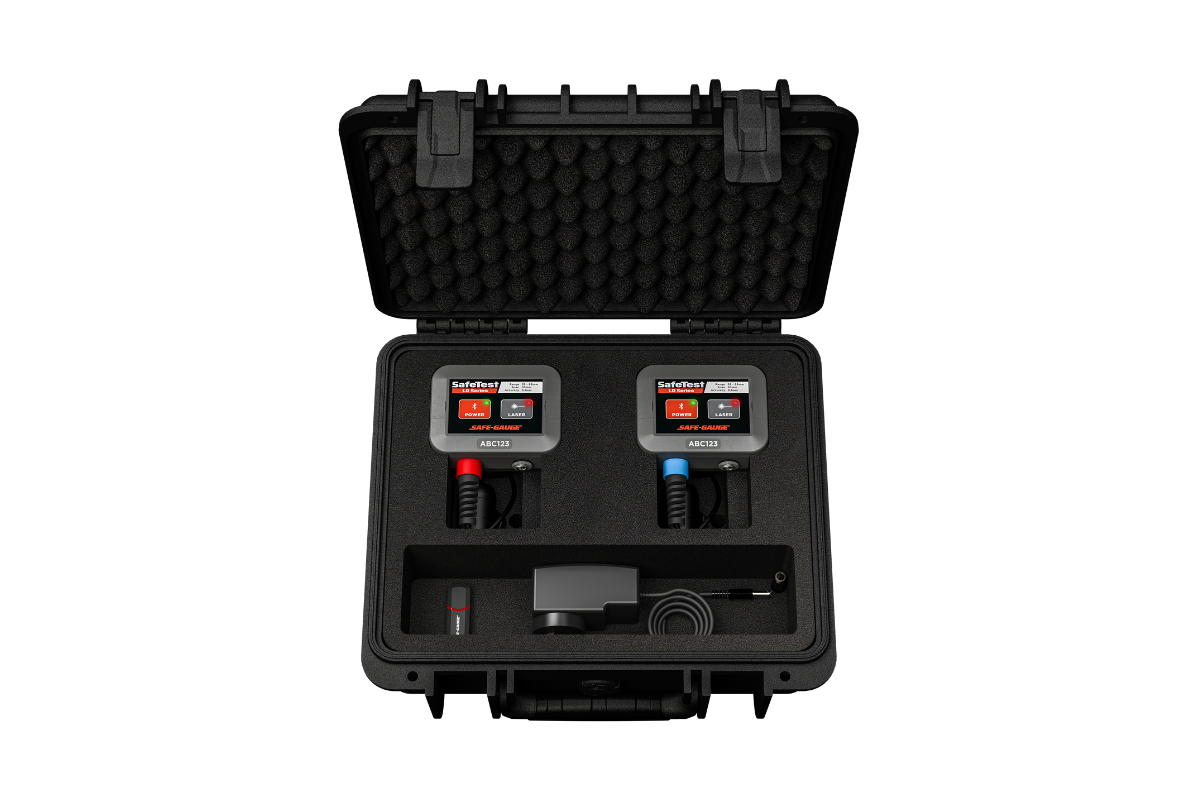

It’s magnetic mounting system allows quick setup, and pairing with the MultiTool Pro enables technicians to capture multiple measurements at the same time. Packaged in a rugged hard shell carry case with built-in charging harness, The Laser Displacement Kit is always ready to go at a moment’s notice.

“It’s easy to setup, and the big advantage is it can get into tight spaces. It will be a handy tool.”

PRODUCT TESTIMONIAL

“It’s easy to setup, and the big advantage is it can get into tight spaces. It will be a handy tool.”

LASER DISPLACEMENT

TECHNICAL SPECS

ELECTRICAL

Battery: Nickel Metal Hydride
Operating Time: Up to 6 hours
Battery life-cycle: 1000 charging cycles
Charging Time: 4 hours

MECHANICAL

Ingress Protection: IP67
Mounting: Laser enclosure has both M6x1 and 1/4 - 20 thread types for versatile mounting options  (Supplied as standard with swivel ball head, utilizing 1/4 - 20 thread)
Operating Range: 35mm (1.38in) to 65mm (2.58in) from target (30mm (1.18in) span)
Classification: Class 2 (Per IEC 60825-1:2014)   
Accuracy: 0.1mm (0.0039in)  
Sensor operating temperature: -10 to 45˚C (14 - 113˚F)

COMMUNICATION

Maximum range: Up to 100m (328ft)

LASER DISPLACEMENT

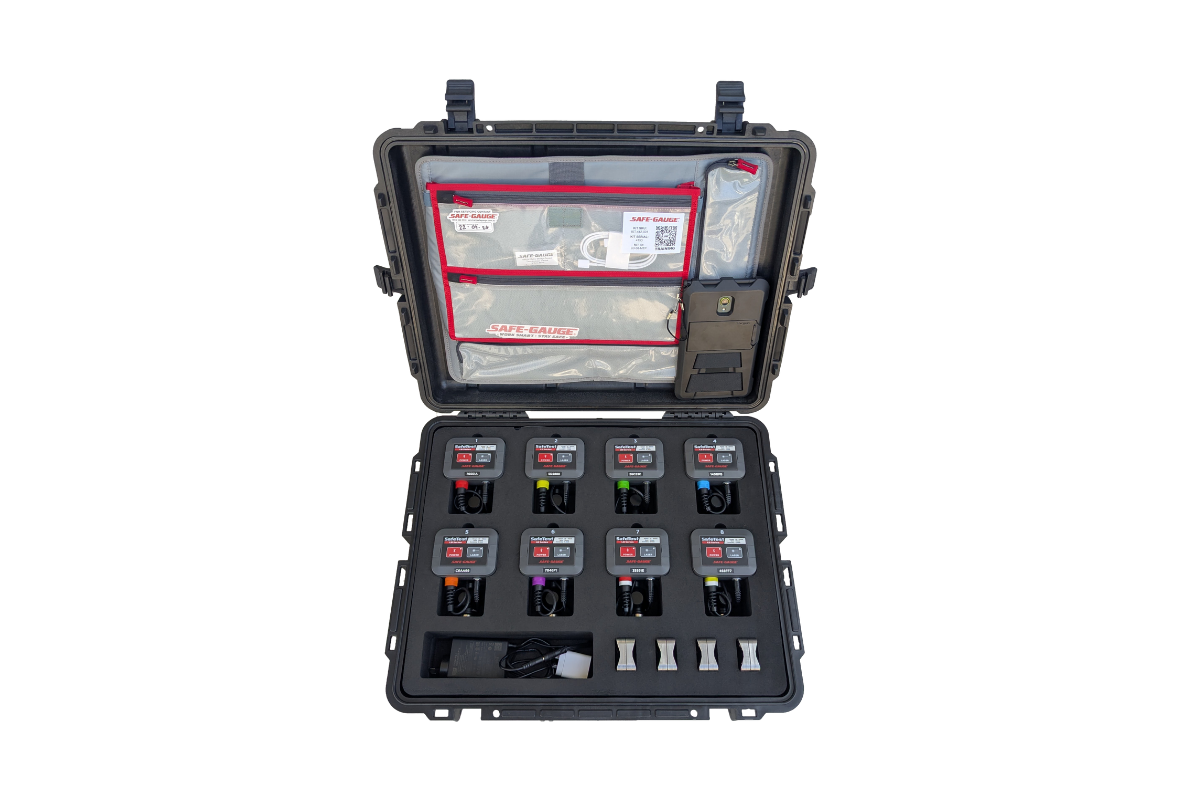

KIT OPTIONS
